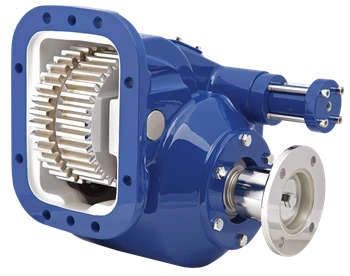

The Muncie 828S-U5710-B3IX or 828SU5710B3IX is an 82 Series power take-off designed for heavy-duty, high-torque applications. The 82 Series uses a double-acting air shift for positive engagement and disengagement, and features a cast iron housing. The series supports up to 500 lb-ft intermittent torque and up to 95 HP at 1,000 RPM at its most capable ratio, making it suited for high-volume pump and high-CFM blower drives. The rotatable direct-mount pump flange allows pump positioning for maximum clearance, with seven direct-mount pump options including SAE "B", "BB", "C", "D", and DIN 5462 mounts. Call us to confirm proper fit and configuration for your transmission and application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Series-rated up to 500 lb-ft intermittent torque and 95 HP at 1,000 RPM
Rotatable direct-mount pump flange for maximum clearance positioning
Seven direct-mount pump options: SAE "B", "BB", "C", "D", and DIN 5462 mounts
Two companion flange output types for remote pump and mechanical drives
Tech Specs
- Series: Muncie 82 Series
- Housing Construction: Cast iron
- Shift Type: Double-acting air shift
- Direct-Mount Pump Options: SAE "B", "BB", "C", "D", DIN 5462
- Rotatable Pump Flange: Standard
- Assembly Arrangements: 2
- Output Shaft Options: 9 (series)
- Speed Ratios Available: 8 (series)
