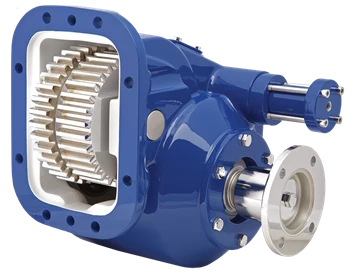

The Muncie 82 Series Power Take-Off, part number 828S-U6208-L3EX or 828SU6208L3EX, is an 8-bolt heavy duty mechanical shift PTO built for high-torque applications. The 82 Series is rated up to 500 lb.ft. intermittent torque and up to 95 H.P. at 1,000 RPM, making it suited for high-volume pumps and high-CFM blowers. The cast iron housing measures 11.5 in. x 14.63 in. x 21.13 in. The rotatable direct mount flange is standard, with seven direct mount pump options including SAE "B," "BB," "C," and "D" and DIN 5462 mounts. Double-acting air shift provides positive engagement and disengagement. A genuine Muncie part from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
82 Series PTO - 8-bolt heavy duty mechanical shift configuration
Double-acting air shift for positive engagement and disengagement
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
Cast iron housing measuring 11.5 in. x 14.63 in. x 21.13 in.
Seven direct mount pump options: SAE B, BB, C, D and DIN 5462 mounts
Rotatable direct mount flange standard for maximum pump clearance
Tech Specs
- Series: Muncie 82 Series
- Configuration: 8-Bolt Heavy Duty Mechanical Shift
- Housing Construction: Cast Iron
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
- Intermittent Torque Capacity: Up to 500 lb.ft.
- Intermittent Horsepower: Up to 95 H.P. at 1,000 RPM
- Direct Mount Pump Options: 7 (SAE B, BB, C, D; DIN 5462)
- Rotatable Pump Flange: Standard
- Assembly Arrangements: 2
- Output Shaft Options: 9
- Speed Ratios Available: 8
- Part Number: 828S-U6208-L3EX or 828SU6208L3EX
