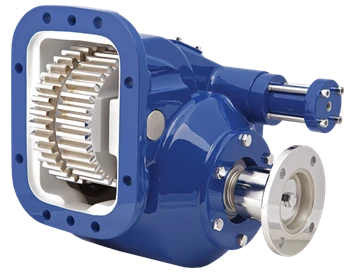

The Muncie 82 Series Power Take-Off, part number 828S-U6210-M2EX or 828SU6210M2EX, is an 8-bolt heavy-duty mechanical shift PTO built for high-torque applications. It features a double-acting air shift for positive engagement and disengagement, and a cast iron housing. The 82 Series is rated for up to 500 lb-ft intermittent torque and up to 95 HP at 1,000 RPM, giving it the capacity to drive high-volume pumps and high-CFM blowers. Seven direct-mount pump flange options are available, including SAE "B," "BB," "C," and "D" mounts, plus DIN 5462. The rotatable direct-mount flange allows positioning for maximum pump clearance. A genuine Muncie part, sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Muncie 82 Series PTO, part number 828S-U6210-M2EX or 828SU6210M2EX
8-bolt heavy-duty mechanical shift configuration
Double-acting air shift for positive engagement and disengagement
Up to 500 lb-ft intermittent torque and 95 HP at 1,000 RPM (series rating)
Seven direct-mount pump flange options: SAE B, BB, C, D and DIN 5462
Rotatable direct-mount flange for maximum pump clearance positioning
Cast iron housing construction
Tech Specs
- Series: Muncie 82 Series
- Part Number: 828S-U6210-M2EX or 828SU6210M2EX
- Shift Type: 8-Bolt Heavy Duty Mechanical Shift
- Housing: Cast iron
- Max Intermittent Torque (series): 500 lb-ft at 1,000 RPM
- Max Intermittent HP (series): 95 HP at 1,000 RPM
- Pump Mount Options: SAE B, BB, C, D; DIN 5462
- Rotatable Pump Flange: Standard
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
