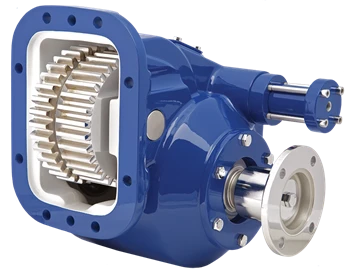

The Muncie 828S-U6808-B1EG or 828SU6808B1EG is a heavy-duty power take-off from Muncie's 82 Series, engineered for high-torque applications including high-volume pumps and high-CFM blowers. The 82 Series features a double-acting air shift for positive engagement and disengagement, a cast iron housing, and a rotatable direct-mount pump flange as standard. Seven direct-mount pump options are available, covering SAE "B," "BB," "C," and "D" mounts as well as DIN 5462. The series supports up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM at its highest ratio. Call us to confirm proper fitment for your transmission and application.
Features
Muncie 82 Series PTO, part 828S-U6808-B1EG or 828SU6808B1EG
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (series rating at highest ratio)
Rotatable direct-mount pump flange standard; 7 SAE and DIN 5462 pump mount options
Two companion flange output types for remote pump and mechanical drives
