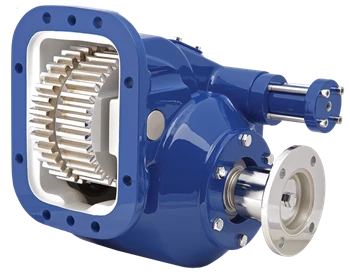

The Muncie 828S-U6808-D1DX or 828SU6808D1DX is a heavy-duty 82 Series power take-off designed for high-torque applications including high-volume pumps and high-CFM blowers. The 82 Series uses a double-acting air shift for positive engagement and disengagement, and features a cast iron housing. Output options include two companion flange types, with rotatable direct mount flanges that allow pump positioning for maximum clearance. Seven direct mount pump flange options cover SAE "B," "BB," "C," and "D" as well as DIN 5462 mounts. Call us to confirm proper fit and configuration for your transmission and application.
Features
Muncie 82 Series power take-off, part number 828S-U6808-D1DX or 828SU6808D1DX
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (series rating)
Seven direct mount pump flange options: SAE B, BB, C, D and DIN 5462
Rotatable direct mount flanges for maximum pump clearance
