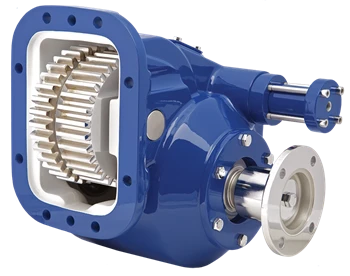

The Muncie 828S-U6808-Q3EX or 828SU6808Q3EX is a power take-off unit from Muncie's 82 Series, engineered for heavy-duty, high-torque applications. The 82 Series uses a double-acting air shift mechanism for positive engagement and disengagement, and features a cast iron housing. The series supports up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM at its highest ratio, making it suited for high-volume pumps and high-CFM blowers. Rotatable direct-mount flanges allow pump positioning for clearance. Call us to confirm proper fit and configuration for your transmission and application.
Features
Muncie 82 Series power take-off, part 828S-U6808-Q3EX or 828SU6808Q3EX
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM (series rating at highest ratio)
Rotatable direct-mount pump flange for pump positioning flexibility
Compatible with SAE "B", "BB", "C", "D", and DIN 5462 direct-mount pump flanges
