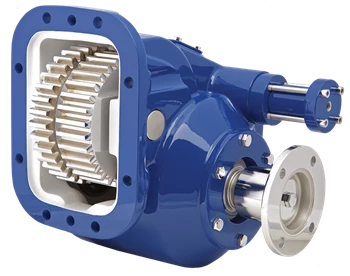

The Muncie 82 Series Power Take-Off, part number 828S-U6812-B3ZX or 828SU6812B3ZX, is a heavy-duty cast iron PTO designed for high-torque applications including high-volume pumps and high-CFM blowers. The 82 Series features a double-acting air shift for positive engagement and disengagement, and a rotatable direct-mount pump flange as standard. The series supports up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM, with seven direct-mount pump options covering SAE "B," "BB," "C," and "D" flanges, plus DIN 5462 mounts. Two companion flange output types add versatility for remote pump and mechanical drive setups. Call us to confirm proper fit for your transmission and application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 HP at 1,000 RPM capacity
Seven direct-mount pump options: SAE "B," "BB," "C," "D," and DIN 5462 mounts
Rotatable direct-mount pump flange standard for maximum pump clearance
Two companion flange output types for remote pump and mechanical drives
