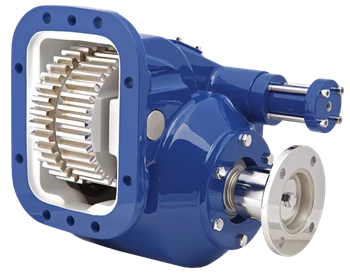

The Muncie 828S-U6813-X1IX or 828SU6813X1IX is an 82 Series Power Take-Off built for high-torque, heavy-duty applications. This unit features an 8-bolt heavy duty mechanical shift configuration and a cast iron housing. The 82 Series is rated for up to 500 lb.ft. intermittent torque and up to 95 H.P. at 1,000 RPM at its highest torque speed ratio, making it suited to driving high-volume hydraulic pumps and high-CFM blowers. The rotatable direct-mount pump flange is standard, and the unit measures 11.5 in. H x 14.63 in. W x 21.13 in. L. Call us to confirm proper fit for your transmission and application.
Features
82 Series Power Take-Off, part number 828S-U6813-X1IX or 828SU6813X1IX
8-bolt heavy duty mechanical shift configuration
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM (series rating, highest ratio)
Rotatable direct-mount pump flange included as standard
Overall dimensions: 11.5 in. H x 14.63 in. W x 21.13 in. L
Tech Specs
- Series: Muncie 82 Series
- Shift Type: Heavy Duty Mechanical Shift
- Mounting: 8-Bolt
- Housing Material: Cast Iron
- Max Intermittent Torque (series): 500 lb.ft.
- Max Continuous Torque (series): 350 lb.ft.
- Max Intermittent H.P. at 1,000 RPM (series): 95 H.P.
- Dimensions (H x W x L): 11.5 in. x 14.63 in. x 21.13 in.
