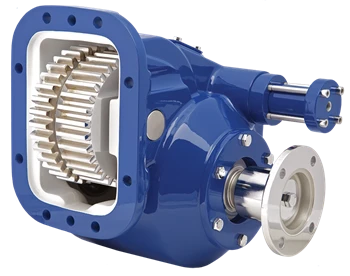

The Muncie 828S-U6815-D1EX or 828SU6815D1EX is a power take-off unit from Muncie's 82 Series, engineered for heavy-duty, high-torque applications. The 82 Series features a cast iron housing and double-acting air shift for positive engagement and disengagement. The series supports intermittent torque ratings up to 500 lb.ft. and up to 95 HP at 1,000 RPM, making it capable of driving high-volume pumps and high-CFM blowers. The rotatable direct-mount pump flange is standard, with seven direct-mount pump options including SAE "B," "BB," "C," "D," and DIN 5462 mounts. Call us to confirm proper fit for your specific transmission and application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Intermittent torque capacity up to 500 lb.ft. at the 0.5 speed ratio range
Up to 95 HP at 1,000 RPM (intermittent)
Seven direct-mount pump options: SAE "B," "BB," "C," "D," and DIN 5462 mounts
Rotatable direct-mount pump flange standard for maximum positioning clearance
Tech Specs
- Housing: Cast iron
- Shift type: Double-acting air shift
- Direct-mount pump options: 7 (SAE "B," "BB," "C," "D," DIN 5462)
- Output shaft options: 9
- Speed ratios available: 8
- Assembly arrangements: 2
- Rotatable pump flange: Standard
- Companion flange output types: 2
