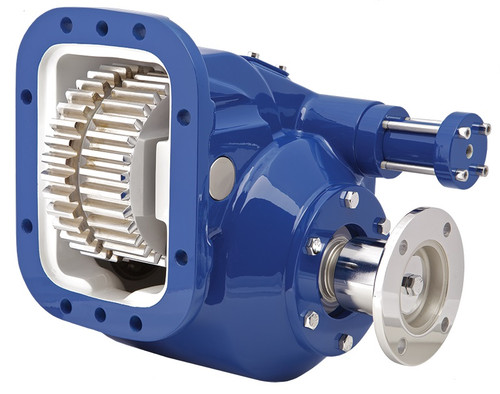

The Muncie 828S-U6819-D4EG or 828SU6819D4EG is a power take-off from Muncie's 82 Series, built for high-torque and heavy-duty applications. The 82 Series features a cast iron housing and a double-acting air shift for positive engagement and disengagement. The series supports up to 500 lb.ft. of intermittent torque and up to 95 H.P. at 1,000 RPM, making it a fit for high-volume pumps and high-CFM blowers. Output options include two companion flange types, and the direct mount pump flange is rotatable as standard, allowing pump positioning for clearance. Seven direct mount pump options are available across SAE "B," "BB," "C," and "D" and DIN 5462 mounts. A genuine Muncie part, sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Muncie 82 Series PTO, part number 828S-U6819-D4EG or 828SU6819D4EG
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM
Rotatable direct mount pump flange standard, with seven SAE and DIN 5462 pump mount options
Two companion flange output types for remote pump or mechanical drive applications
