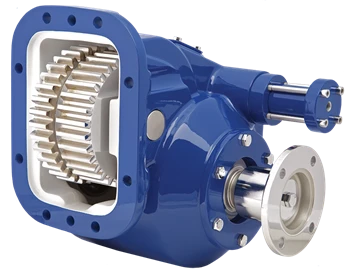

The Muncie 828S-U6819-Q1AX or 828SU6819Q1AX is a power take-off unit from Muncie's 82 Series, engineered for high-torque and heavy-duty applications. The 82 Series features a double-acting air shift for positive engagement and disengagement, a cast iron housing, and a rotatable direct-mount pump flange as standard. The series supports up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM, with seven direct-mount pump options covering S.A.E. "B," "BB," "C," and "D" flanges as well as DIN 5462 mounts. Two companion flange output types allow use with remote pump and mechanical drives. Call us to confirm proper fitment for your specific transmission and application.
Features
Double-acting air shift for positive engagement and disengagement
Cast iron housing construction
Up to 500 lb.ft. intermittent torque and 95 H.P. at 1,000 RPM (series rating)
Seven direct-mount pump flange options: S.A.E. B, BB, C, D, and DIN 5462
Rotatable direct-mount pump flange standard for clearance positioning
Two companion flange output types for remote pump and mechanical drives
