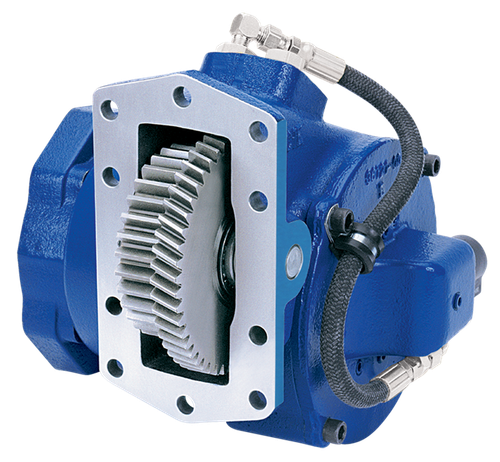

The Muncie CS10-A1005-H1ED or CS10A1005H1ED is a heavy-duty clutch shift power take-off from Muncie Power's CS10 Series, configured as a 10-bolt mount unit. It offers three remote output shaft styles in both keyed and flange types for remote pump drives, plus rotatable direct mount flanges in SAE "B", "BB", "C", and DIN 5462 configurations to fit most common pump interfaces. Two assembly arrangements let you mount the PTO shaft-high or shaft-low on either side of the transmission. Standard pressure lubrication is built in. Muncie's patented drag brake prevents output shaft rotation when the PTO is disengaged. Call us to confirm proper fit for your transmission application.
Features
Muncie CS10 Series heavy-duty clutch shift PTO, 10-bolt mount
SAE "B", "BB", and "C"; DIN 5462 direct mount pump flange options
Three remote output shaft styles available in keyed and flange types
Rotatable direct mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Two assembly arrangements: shaft-high or shaft-low mounting on either side of the transmission
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
