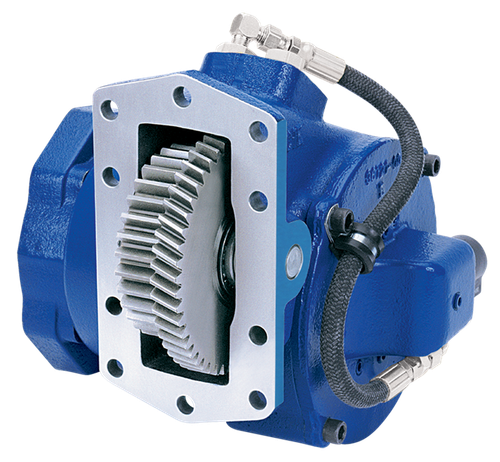

The Muncie CS10-A1006-H1BX or CS10A1006H1BX is a heavy-duty clutch shift power take-off from the CS10 Series, configured as a 10-bolt unit. Three remote mount output shaft options are available in both keyed and flange types, giving flexibility for remote pump drive setups. Direct mount pump flanges are rotatable and accept SAE "B", "BB", and "C" as well as DIN 5462 interfaces, covering most popular hydraulic pumps. Two assembly arrangements let you mount the PTO shaft-high or shaft-low on either side of the transmission. Muncie's patented drag brake prevents output shaft rotation when the PTO is in the OFF position. Standard pressure lubrication is built in at no added cost. Call us to confirm proper fit for your transmission application.
Features
10-bolt heavy-duty clutch shift (CS10 Series) configuration
Three remote mount output shaft options: keyed and flange types for remote pump drives
Direct mount pump flanges accept SAE "B", "BB", "C", and DIN 5462 interfaces
Rotatable direct mount flanges allow pump positioning for maximum clearance
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Two assembly arrangements for shaft-high or shaft-low mounting on either side of the transmission
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
