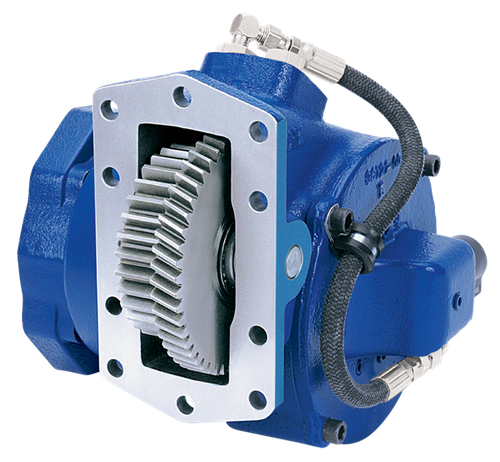

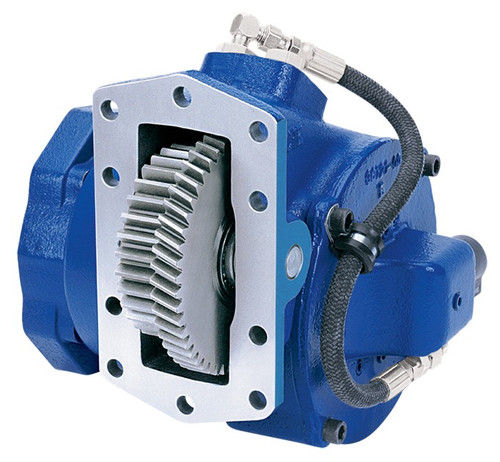

The Muncie CS10-A1007-J32B or CS10A1007J32B is a CS10 Series 10-bolt heavy-duty clutch shift power takeoff. It features standard pressure lubrication and Muncie's patented drag brake that prevents output shaft rotation when the unit is in the off position. Direct mount flanges are rotatable, accommodating SAE "B", "BB", and "C" as well as DIN 5462 pump configurations, and three remote mount output shaft options cover both keyed and flange types for remote pump drive applications. Two assembly arrangements allow the PTO to be mounted shaft-high or shaft-low on either side of the transmission. Call us to confirm proper fit for your transmission and application.
Features
CS10 Series 10-bolt heavy-duty clutch shift design
Patented Muncie drag brake prevents output shaft rotation in the off position
SAE "B", "BB", and "C"; DIN 5462 direct mount pump flange options
Rotatable direct mount flanges for maximum pump clearance
Three remote mount output shaft types: keyed and flange configurations
Two assembly arrangements for shaft-high or shaft-low mounting on either side of the transmission
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
