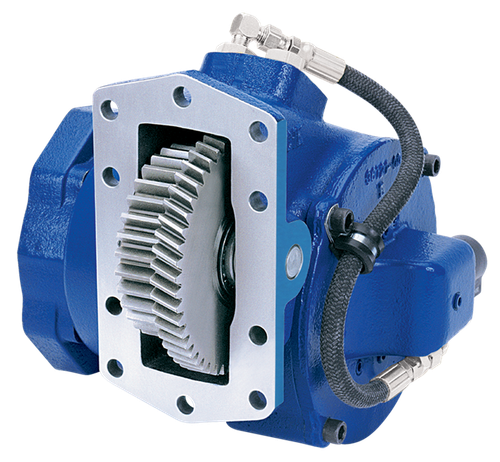

The Muncie CS10-A1007-J3EX or CS10A1007J3EX is a 10-bolt, heavy-duty clutch shift power take-off from Muncie's CS10 Series, built for demanding hydraulic pump drive applications. It ships with two assembly arrangements, letting you mount the unit shaft high or shaft low on either side of the transmission. Direct mount flanges are rotatable to maximize pump clearance, and the unit accepts SAE "B", "BB", and "C" as well as DIN 5462 direct mount pumps. Three remote mount output shaft options are available in both keyed and flange types. Standard pressure lubrication is included, and Muncie's patented drag brake prevents output shaft rotation when the PTO is disengaged. Confirm transmission compatibility before ordering, or give us a call and we'll help verify the right fit.
Features
10-bolt heavy-duty clutch shift design
Two assembly arrangements: mount shaft high or low on either side of the transmission
SAE "B", "BB", and "C"; DIN 5462 direct mount pump compatibility
Three remote mount output shaft options in keyed and flange types
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Standard pressure lubrication included at no added cost
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
