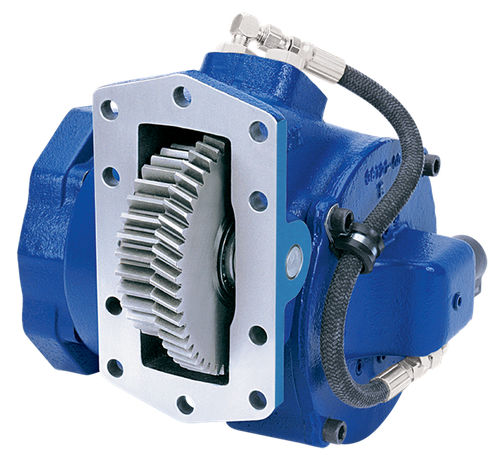

The Muncie CS10-A1007-J3IB or CS10A1007J3IB is a heavy-duty clutch shift power take-off from the CS10 Series, built for demanding hydraulic applications. This 10-bolt unit features Muncie's patented drag brake that stops output shaft rotation when the PTO is in the OFF position, preventing accidental pump engagement. Direct mount flanges are rotatable for pump clearance, and the unit accepts SAE "B", "BB", and "C" as well as DIN 5462 pumps. Three remote mount output shaft options are available in both keyed and flange types. Two assembly arrangements allow mounting shaft high or low on either side of the transmission. Standard pressure lubrication is included. Available from Pro Gear and Transmission - call us to confirm proper fit for your transmission and application.
Features
10-bolt heavy-duty clutch shift design
Patented Muncie drag brake prevents output shaft rotation when PTO is in OFF mode
SAE "B", "BB", and "C" plus DIN 5462 direct mount pump compatibility
Rotatable direct mount flanges for maximum pump clearance
Three remote mount output shaft styles: keyed and flange types
Two assembly arrangements: mount shaft high or low on either side of the transmission
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
