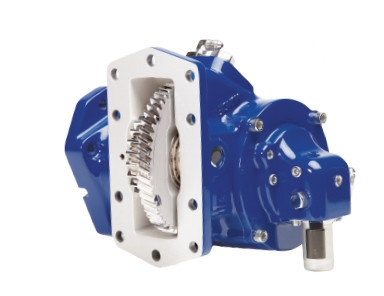

The Muncie CS10-A1010-H32X or CS10A1010H32X is a heavy-duty clutch-shift power take-off from Muncie Power's CS10 Series, configured as a 10-bolt unit. It offers three remote-mount output shaft options in both keyed and flange types, plus direct-mount pump flanges in SAE "B", "BB", and "C" configurations as well as DIN 5462, covering the most common hydraulic pump bolt patterns. The rotatable direct-mount flanges let you reposition the pump for clearance in tight installations. Muncie's patented drag brake prevents output shaft rotation when the PTO is disengaged. Standard pressure lubrication is built in. Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch-shift (CS10 Series) design
Three remote-mount output shafts available in keyed and flange types
Direct-mount pump flanges: SAE "B", "BB", "C", and DIN 5462 patterns
Rotatable direct-mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Two assembly arrangements: shaft-high or shaft-low mounting on either side of the transmission
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
