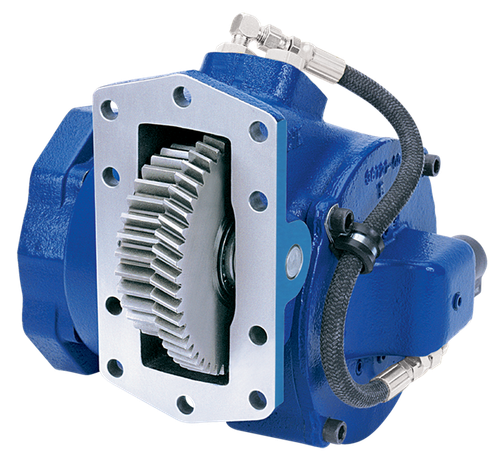

The Muncie CS10-A1010-J1IX or CS10A1010J1IX is a 10-bolt, heavy-duty clutch shift power take-off from Muncie's CS10 Series. Built for demanding applications, it ships in two assembly arrangements that allow mounting shaft-high or shaft-low on either side of the transmission. Direct-mount flanges are rotatable, so the pump can be clocked for maximum clearance, and the unit accepts SAE "B", "BB", and "C" as well as DIN 5462 pump interfaces. Three remote-mount output shaft options cover both keyed and flange configurations for added installation flexibility. A patented Muncie drag brake prevents shaft rotation when the PTO is disengaged. Standard pressure lubrication is built in. Call us to confirm proper fit for your transmission and application.
Features
10-bolt heavy-duty clutch shift design
Two assembly arrangements: shaft-high or shaft-low mount on either side of the transmission
Rotatable direct-mount flanges for SAE "B", "BB", "C", and DIN 5462 pump interfaces
Three remote-mount output shaft options in keyed and flange types
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Standard pressure lubrication included
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
