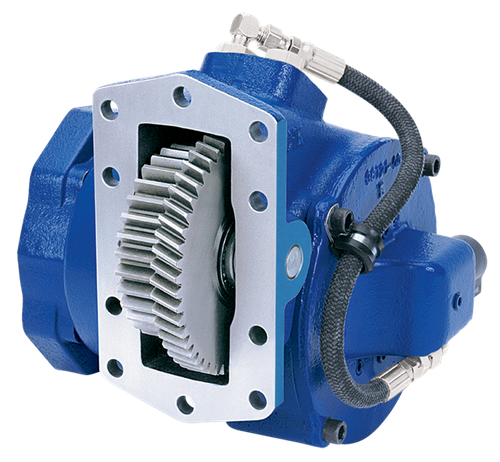

The Muncie CS11-A1005-H3DX or CS11A1005H3DX is a 10-bolt heavy-duty clutch shift power take-off from Muncie Power Products' CS11 Series. Compared to the CS10, the CS11 delivers a more compact installation footprint and a remotely mounted solenoid. Three remote mount output shafts are available in keyed and flange configurations, supporting SAE "B", "BB", and "C" as well as DIN 5462 direct mount pump connections. Rotatable direct mount flanges let you position the pump for maximum clearance in tight installations. Two assembly arrangements allow mounting the unit shaft-high or shaft-low on either side of the transmission. The standard pressure lubrication system requires no additional components. Muncie's patented drag brake prevents output shaft rotation when the PTO is off. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift design, CS11 Series compact installation
Remotely mounted solenoid for flexible installation routing
Three remote mount output shaft options: keyed and flange types
SAE "B", "BB", and "C"; DIN 5462 direct mount pump compatibility
Rotatable direct mount flanges for maximum pump clearance
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Two assembly arrangements: shaft-high or shaft-low on either side of the transmission
Standard pressure lubrication included
Tech Specs
Additional Information
| CS11 SERIES PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP @ 1000 RPM
|
Intermittent Torque (lb-ft)
|
Continuous Torque (lb-ft)
|
Intermittent (kW) @ 1000 RPM
|
Intermittent Torque (Nm)
|
Continuous Torque (Nm)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
