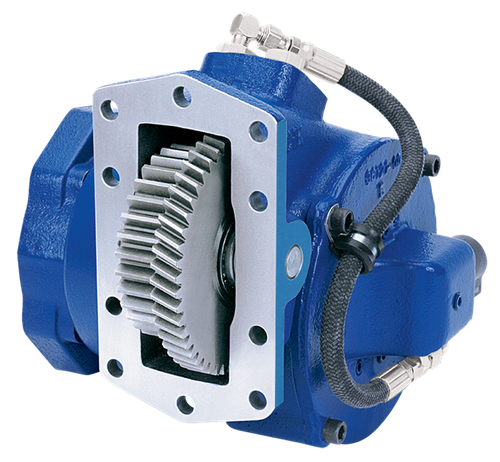

The Muncie CS11-A1006-H1CB or CS11A1006H1CB is a 10-bolt heavy-duty clutch shift power take-off from the CS11 Series, designed for compact installation with a remotely mounted solenoid. Direct-mount flanges are rotatable, so the pump can be positioned for maximum clearance, and the unit accepts SAE "B", "BB", and "C" as well as DIN 5462 pump connections to fit most popular hydraulic pumps. Three remote-mount output shafts are offered in keyed and flange types for remote pump drive flexibility. Standard pressure lubrication is included, and Muncie's patented drag brake prevents output shaft rotation when the PTO is in the off position. Two assembly arrangements allow mounting shaft-high or shaft-low on either side of the transmission. Call us to confirm proper fit for your application.
Features
CS11 Series: compact installation with remotely mounted solenoid
10-bolt heavy-duty clutch shift design
SAE "B", "BB", and "C"; DIN 5462 direct-mount pump options
Rotatable direct-mount flanges for maximum pump clearance
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Two assembly arrangements - mount shaft-high or shaft-low on either side of the transmission
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
