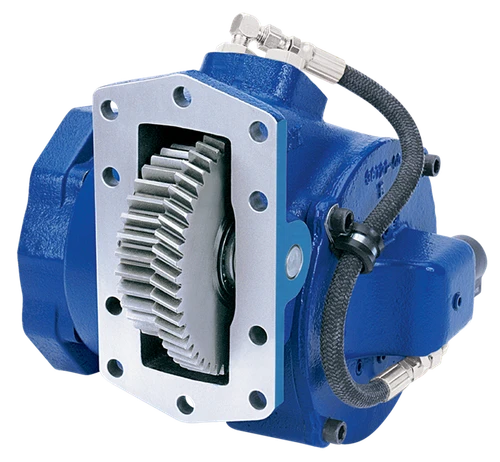

The Muncie CS11 Series Power Take-Off, part number CS11-A1007-H3CB or CS11A1007H3CB, is a 10-bolt heavy-duty clutch shift PTO designed for compact installation with a remotely mounted solenoid. Direct mount pump flanges are rotatable for maximum clearance and accept SAE "B", "BB", and "C" as well as DIN 5462 pump patterns. Three remote mount output shaft options - both keyed and flange types - suit a range of remote pump drive setups. The patented Muncie drag brake prevents output shaft rotation when the PTO is disengaged, and standard pressure lubrication is built in. Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission. Call us to confirm proper fit for your application.
Features
CS11 Series - compact installation with remotely mounted solenoid
10-bolt heavy-duty clutch shift configuration
SAE "B", "BB", and "C"; DIN 5462 direct mount pump options
Three remote mount output shaft styles - keyed and flange types
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Two assembly arrangements for shaft-high or shaft-low mounting on either side of the transmission
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 95 | 500 | 350 | (71) | (678) | (475) |
| 06 | 91 | 480 | 336 | (68) | (651) | (475) |
| 07 | 86 | 450 | 315 | (64) | (610) | (427) |
| 08 | 80 | 420 | 294 | (60) | (569) | (398) |
| 10 | 73 | 385 | 270 | (54) | (522) | (365) |
