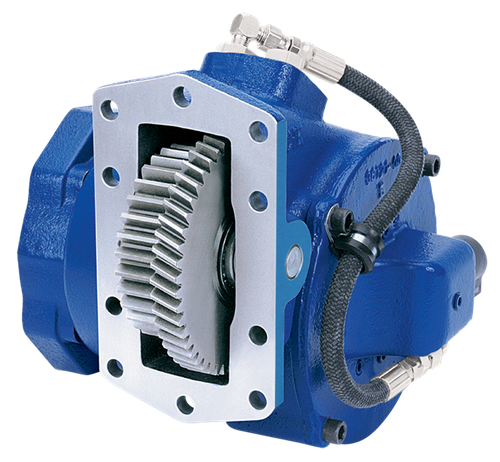

The Muncie CS11-A1008-H1PB or CS11A1008H1PB is a CS11 Series heavy-duty clutch shift power take-off built for demanding truck applications. This 10-bolt unit features a remotely mounted solenoid for a more compact installation compared to the CS10 Series. Output options include three remote-mount shaft styles in both keyed and flange configurations, plus SAE "B", "BB", and "C" and DIN 5462 direct-mount pump flanges that rotate for clearance positioning. The patented Muncie drag brake holds the output shaft stationary when the PTO is disengaged. Standard pressure lubrication is included, and two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission. Call us to confirm proper fit for your transmission application.
Features
CS11 Series heavy-duty clutch shift PTO, part number CS11-A1008-H1PB or CS11A1008H1PB
10-bolt mounting configuration
Remotely mounted solenoid for compact installation
SAE "B", "BB", and "C" plus DIN 5462 direct-mount pump flange options with rotatable flanges
Three remote-mount output shaft styles in keyed and flange types
Patented Muncie drag brake prevents output shaft rotation when PTO is in OFF mode
Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission
Standard pressure lubrication included
Tech Specs
Additional Information
| CS11 SERIES PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP @ 1000 RPM
|
Intermittent Torque (lb-ft)
|
Continuous Torque (lb-ft)
|
Intermittent (kW) @ 1000 RPM
|
Intermittent Torque (Nm)
|
Continuous Torque (Nm)
|
| 05 | 95 | 500 | 350 | 71 | 678 | 475 |
| 06 | 91 | 480 | 336 | 68 | 651 | 475 |
| 07 | 86 | 450 | 315 | 64 | 610 | 427 |
| 08 | 80 | 420 | 294 | 60 | 569 | 398 |
| 10 | 73 | 385 | 270 | 54 | 522 | 365 |
