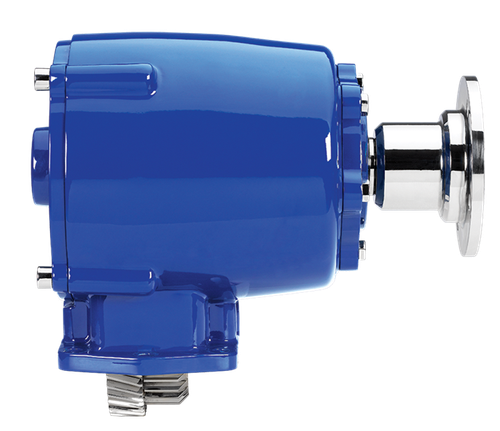

The Muncie CS40-A1010-H1C6 or CS40A1010H1C6 is a heavy-duty clutch shift power take-off from the Muncie CS40/41 Series, designed to deliver maximum power from Allison 3000 and 4000 series and Caterpillar CX transmissions. It uses a 10-bolt mounting configuration and features precision ground gears for high torque capacity and quiet operation. The 1410 series remote mount output shaft supports remote pump drive setups, while the S.A.E. "C" and DIN 5462 direct mount options accommodate most pumps requiring high power input. Rotatable direct mount flanges let you position the pump for maximum clearance, and two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission. Maximum output speed on fire pump applications is 4,000 RPM. Standard pressure lubrication is included. Call us to confirm proper fit for your application.
Features
CS40 Series clutch shift PTO, 10-bolt heavy duty configuration
Precision ground gears for high torque capacity and quiet operation
1410 series remote mount output shaft for remote pump drives
S.A.E. "C" and DIN 5462 direct mount options fit most high-power-input pumps
Rotatable direct mount flanges allow pump positioning for maximum clearance
Two assembly arrangements - mount shaft high or low on either side of the transmission
Maximum output speed of 4,000 RPM on fire pump applications
Standard pressure lubrication included
Tech Specs
- Series: Muncie CS40/41 Clutch Shift PTO
- Configuration: 10-Bolt Heavy Duty Clutch Shift
- Compatible Transmissions: Allison 3000 Series, Allison 4000 Series, Caterpillar CX
- Output Shaft: 1410 Series Remote Mount
- Direct Mount Options: S.A.E. "C" and DIN 5462
- Assembly Arrangements: Two (shaft high or shaft low, either side of transmission)
- Max Output Speed (fire pump): 4,000 RPM
- Lubrication: Standard pressure lubrication
- Dimensions (H x W x L): 12 in. x 13.5 in. x 13.5 in.
