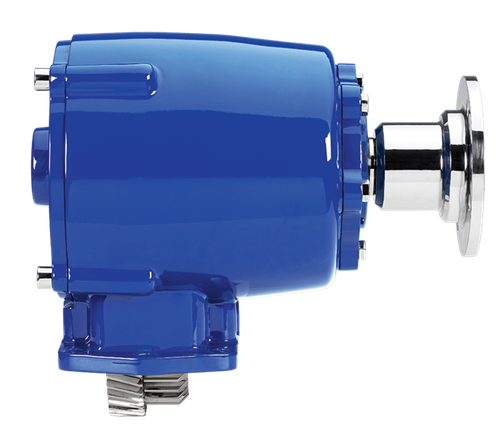

CS41-A1007-H2ZX Muncie CS41 Series PTO - 10-Bolt Heavy Duty Clutch Shift

The Muncie CS41-A1007-H2ZX or CS41A1007H2ZX is a 10-bolt heavy-duty clutch shift power take-off from the CS41 Series, designed for Allison 3000 and 4000 series and Caterpillar CX transmissions. It supports both SAE "C" and DIN 5462 direct mount configurations and a 1410 series remote mount output shaft for remote pump drive applications. Rotatable direct mount flanges let you position the pump for maximum clearance, and two assembly arrangements allow mounting shaft-high or shaft-low on either side of the transmission. Pressure lubrication is standard. Maximum output speed on fire pump applications is 4,000 RPM. Call us to confirm proper fit for your application.

Features

10-bolt heavy-duty clutch shift design for Allison 3000/4000 and Caterpillar CX transmissions
Precision ground gears for high torque capacity and quiet operation
Extra large bearings and components for increased durability under high torque loads
1410 series remote mount output shaft for remote pump drive installations
SAE "C" and DIN 5462 direct mount options with rotatable flanges for pump positioning flexibility
Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission
Standard pressure lubrication included at no extra cost
Maximum output speed of 4,000 RPM on fire pump applications

Tech Specs

•
•
•
• Series: CS41 (Clutch Shift)
• Bolt Pattern: 10-bolt heavy duty
• Compatible Transmissions: Allison 3000 Series, Allison 4000 Series, Caterpillar CX
• Direct Mount Options: SAE "C" and DIN 5462
• Remote Mount Output: 1410 series output shaft
• Assembly Arrangements: Two - shaft high or shaft low, either side of transmission
• Lubrication: Standard pressure lubrication
• Max Output Speed (Fire Pump): 4,000 RPM
