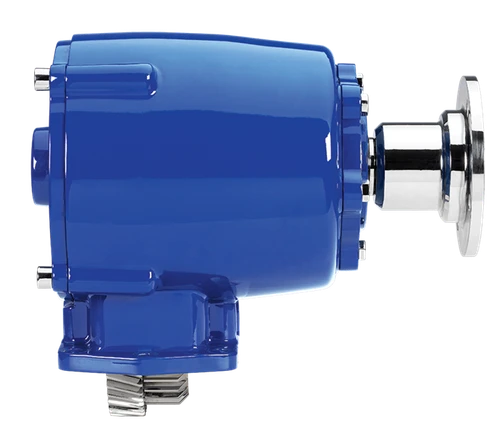

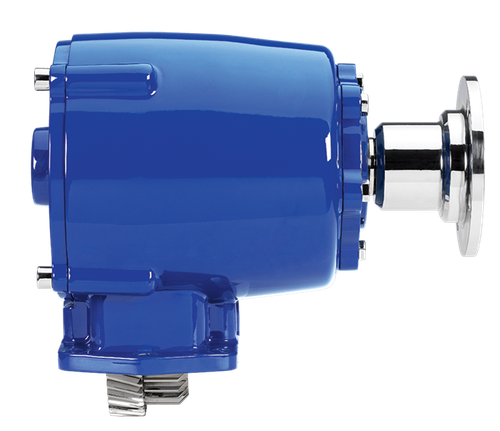

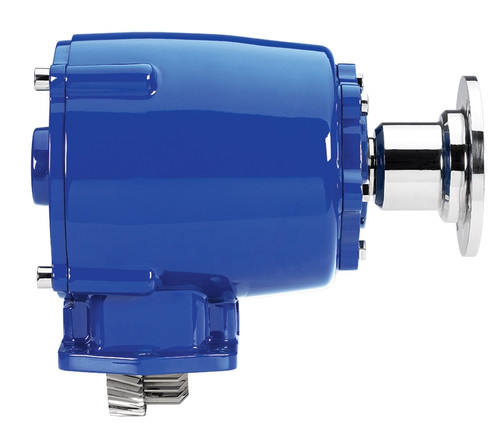

The Muncie CS41 Series clutch-shift power take-off, part number CS41-A1007-H3CX or CS41A1007H3CX, is built for high-demand applications on Allison 3000 and 4000 series and Caterpillar CX transmissions. Precision ground gears deliver the torque capacity needed for quiet, sustained operation, while extra-large bearings handle the load. The 1410 series remote mount output shaft supports remote pump drives, and rotatable SAE "C" and DIN 5462 direct-mount flanges fit most pumps requiring high power input. Two assembly arrangements let you mount the unit shaft-high or shaft-low on either side of the transmission. Standard pressure lubrication is included. Maximum output speed for fire pump applications is 4,000 RPM. Call us to confirm proper fit for your application.
Features
Clutch-shift design for Allison 3000/4000 and Caterpillar CX transmissions
Precision ground gears for high torque capacity and quiet operation
Extra-large bearings and components for durability under sustained load
1410 series remote mount output shaft for remote pump drives
SAE "C" and DIN 5462 direct-mount flanges with rotatable positioning for pump clearance
Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 07 | 114 | 600 | 420 | (85) | (813) | (569) |
| 10 | 103 | 545 | 382 | (76) | (739) | (517) |
| 12 | 93 | 490 | 343 | (70) | (664) | (465) |
