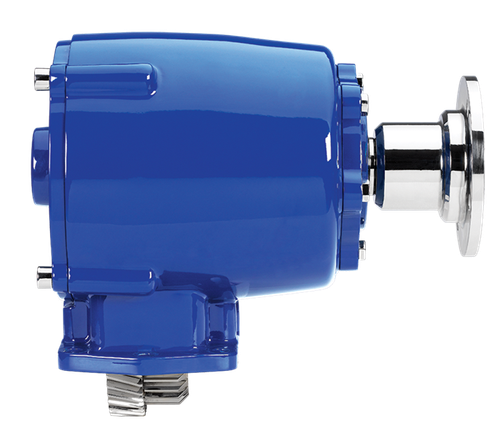

The Muncie CS41-A1007-H3VB or CS41A1007H3VB is a 10-bolt heavy-duty clutch shift power take-off from Muncie's CS41 Series, designed to deliver maximum output from Allison 3000 and 4000 series and Caterpillar CX transmissions. Precision ground gears keep operation quiet while handling demanding torque loads. Oversized bearings throughout extend service life in high-cycle applications. The 1410-series remote mount output shaft suits remote pump drives, and both S.A.E. "C" and DIN 5462 direct mount flanges are included to fit most high-power-input pump requirements. Two assembly arrangements allow the unit to be mounted shaft-high or shaft-low on either side of the transmission. Standard pressure lubrication is built in at no added cost. Maximum output speed for fire pump applications is 4,000 RPM. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift design for Allison 3000/4000 and Caterpillar CX transmissions
Precision ground gears for high torque capacity and quiet operation
Oversized bearings and components for durability under sustained load
1410-series remote mount output shaft for remote pump drive applications
S.A.E. "C" and DIN 5462 direct mount flange options fit most high-power-input pumps
Two assembly arrangements allow shaft-high or shaft-low mounting on either transmission side
Maximum output speed of 4,000 RPM on fire pump applications
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP @ 1000 RPM
|
Intermittent Torque (lb-ft)
|
Continuous Torque (lb-ft)
|
Intermittent (kW) @ 1000 RPM
|
Intermittent Torque (Nm)
|
Continuous Torque (Nm)
|
| 07 | 114 | 600 | 420 | (85) | (813) | (569) |
| 10 | 103 | 545 | 382 | (76) | (739) | (517) |
| 12 | 93 | 490 | 343 | (70) | (664) | (465) |
