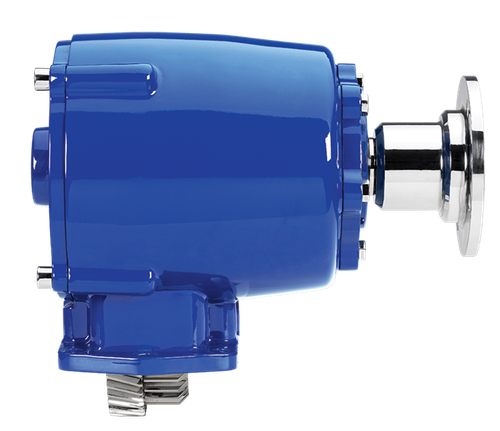

The Muncie CS41-A1010-H3EX or CS41A1010H3EX is a 10-bolt heavy-duty clutch shift power take-off from Muncie's CS41 Series, designed to deliver maximum output from Allison 3000 and 4000 series and Caterpillar CX transmissions. The CS41 runs precision ground gears for quiet operation at high torque loads, and uses extra-large bearings throughout for durability in demanding service. Standard pressure lubrication comes built in. The 1410 series remote mount output shaft supports remote pump drives, while S.A.E. "C" and DIN 5462 direct mount flanges cover most high-power pump inputs. Rotatable direct mount flanges let you position the pump for maximum clearance. Maximum output speed on fire pump applications is 4,000 RPM. A genuine Muncie part, available from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift design for Allison 3000/4000 and Caterpillar CX transmissions
Precision ground gears for high torque capacity and quiet operation
Extra-large bearings and components for durability in high-demand service
1410 series remote mount output shaft for remote pump drives
S.A.E. "C" and DIN 5462 direct mount flange options fit most high-power-input pumps
Two assembly arrangements allow mounting shaft-high or shaft-low on either side of the transmission
Rotatable direct mount flanges for maximum pump clearance positioning
Maximum output speed of 4,000 RPM on fire pump applications
Tech Specs
Additional Information
| CS41 SERIES PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP @ 1000 RPM
|
Intermittent Torque (lb-ft)
|
Continuous Torque (lb-ft)
|
Intermittent (kW) @ 1000 RPM
|
Intermittent Torque (Nm)
|
Continuous Torque (Nm)
|
| 0.70 | 114 | 600 | 420 | 85 | 813 | 569 |
| 1.00 | 103 | 545 | 382 | 76 | 739 | 517 |
| 1.20 | 93 | 490 | 343 | 70 | 664 | 465 |
