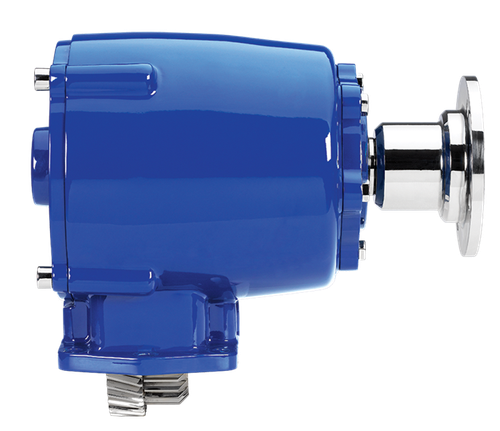

The Muncie CS41-A1012-H3IX or CS41A1012H3IX is a heavy-duty clutch shift power take-off from Muncie Power's CS40/41 Series, designed to deliver maximum power from Allison 3000 and 4000 series and Caterpillar CX transmissions. This 10-bolt unit features precision ground gears for high torque capacity and quiet operation, along with extra-large bearings sized for demanding duty cycles. The 1410 series remote mount output shaft supports remote pump drives, while SAE "C" and DIN 5462 direct mount flanges fit most high-power-input pumps. Rotatable direct mount flanges let you position the pump for maximum clearance. Two assembly arrangements allow shaft-high or shaft-low mounting on either side of the transmission. Standard pressure lubrication is built in at no added cost. Call us to confirm proper fit for your application.
Features
10-bolt heavy-duty clutch shift design for Allison 3000/4000 and Caterpillar CX transmissions
Precision ground gears for high torque capacity and quiet operation
Extra-large bearings and components for extended durability in high-demand applications
1410 series remote mount output shaft for remote pump drive configurations
SAE "C" and DIN 5462 direct mount flange options fit most high-power-input pumps
Rotatable direct mount flanges and two assembly arrangements allow shaft-high or shaft-low positioning on either side of the transmission
Maximum output speed of 4000 RPM on fire pump applications
Standard pressure lubrication included
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 07 | 114 | 600 | 420 | (85) | (813) | (569) |
| 10 | 103 | 545 | 382 | (76) | (739) | (517) |
| 12 | 93 | 490 | 343 | (70) | (664) | (465) |
Parts manual and diagrams: Muncie CS41 Series PTO parts list with prices
