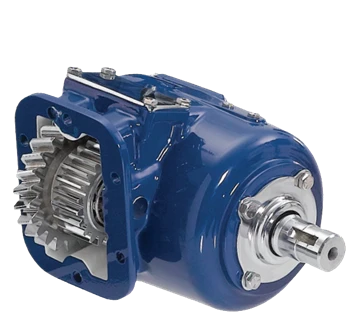

The Muncie CS6B-A6704-A3BP (also referenced as CS6BA6704A3BP) is a CS6 Series power take-off featuring a 6-bolt clutch shift engagement. This PTO spans 19 transmission input gear configurations, covering most popular automatic and manual transmissions including the Allison 1000/2000 series. Direct mount pump flanges are available in SAE "A", "B", and "BB" as well as DIN 5462 patterns, and the flanges rotate to maximize underhood clearance. Three remote mount output shaft options - keyed and flange types - accommodate a range of remote pump drives. Muncie's patented drag brake prevents output shaft rotation whenever the PTO is disengaged. An optional pulse generator is available to allow a System Protection Device to monitor PTO shaft speed. Call us to confirm proper fit for your specific transmission and pump configuration.
Features
CS6 Series PTO with 6-bolt clutch shift engagement
19 transmission input gear configurations covering most popular automatic and manual transmissions, including Allison 1000/2000 series
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump flanges - rotatable for maximum installation clearance
Three remote mount output shaft styles: keyed and flange types for remote pump drive flexibility
Patented Muncie drag brake prevents output shaft rotation when PTO is in the OFF position
Optional pulse generator supports System Protection Device monitoring of PTO shaft speed
Tech Specs
- Shift Type: 6-Bolt Clutch Shift
- Series: CS6
- Direct Mount Pump Patterns: SAE "A", SAE "B", SAE "BB", DIN 5462
- Remote Mount Output Shafts: Keyed and flange types (3 options)
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Pulse Generator: Optional (enables System Protection Device shaft speed monitoring)
- Transmission Input Configurations: 19 gears covering most popular automatic and manual transmissions
- Overall Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
