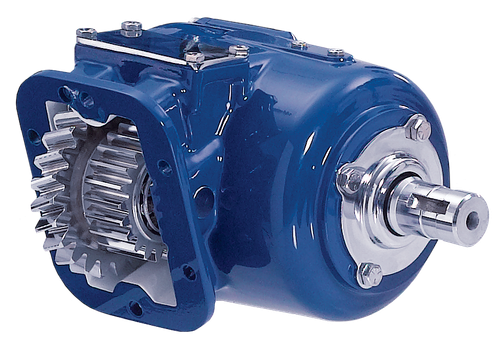

The Muncie CS6B-A6704-S1BP or CS6BA6704S1BP is a CS6 Series power take-off in a 6-bolt clutch shift configuration. It fits most popular automatic and manual transmissions, including Allison 1000/2000 series, using six transmission input gear options. Direct mount pump flanges accept SAE "A", "B", and "BB" and DIN 5462 pumps, and those flanges rotate to position the pump for maximum clearance in tight engine bays. Three remote mount output shaft options cover keyed and flange types for added installation flexibility. Muncie's patented drag brake prevents output shaft rotation when the PTO is in the off position. An optional pulse generator port allows a System Protection Device to monitor PTO shaft speed. Call us to confirm proper fit for your application.
Features
CS6 Series 6-bolt clutch shift power take-off
Six transmission input gear options - fits most popular automatic and manual transmissions, including Allison 1000/2000 series
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump options
Rotatable direct mount flanges for maximum pump clearance
Patented Muncie drag brake prevents shaft rotation when PTO is off
Optional pulse generator port for System Protection Device shaft speed monitoring
Tech Specs
- Series: CS6
- Configuration: 6-Bolt Clutch Shift
- Transmission Input Gear Options: 6
- Direct Mount Pump Flanges: SAE A, SAE B, SAE BB, DIN 5462
- Remote Mount Output Shaft Types: Keyed and flange (3 options)
- Drag Brake: Patented Muncie drag brake (shaft locked in OFF mode)
- Optional Pulse Generator: Yes - compatible with System Protection Device
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
