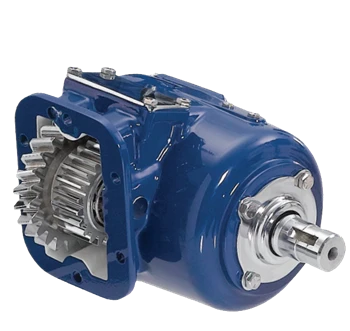

The Muncie CS6B-A6704-S1GP or CS6BA6704S1GP is a CS6 Series power take-off with a 6-bolt clutch shift configuration. It covers 19 transmission input gear combinations, making it compatible with a wide range of automatic and manual transmissions including the Allison 1000/2000 series. Direct mount pump options span SAE "A", "B", and "BB" flanges plus DIN 5462, and the rotatable flanges let you position the pump for maximum clearance in tight installations. Intermittent torque ratings reach 300 lb.ft. (407 Nm) at 1000 RPM for speed ratios 03 through 07, and 275 lb.ft. (373 Nm) for ratios 09 through 14. Muncie's patented drag brake prevents output shaft rotation when the PTO is off. Call us to confirm proper fit for your application.
Features
CS6 Series 6-bolt clutch shift configuration
19 transmission input gear combinations - fits Allison 1000/2000 series and most popular manual transmissions
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump flanges
Rotatable direct mount flanges for maximum pump clearance
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Optional pulse generator supports System Protection Device shaft-speed monitoring
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
