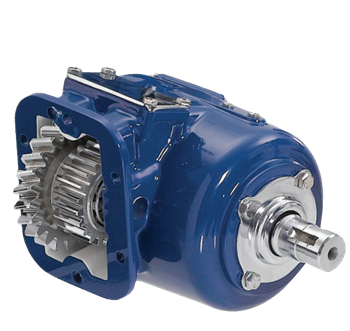

The Muncie CS6 Series Power Take-Off, part number CS6B-A6705-H1SS or CS6BA6705H1SS, is a 6-bolt clutch shift PTO designed to fit Allison 1000/2000 series automatics and most popular manual transmissions. It supports SAE "A", "B", and "BB" as well as DIN 5462 direct-mount pump options with rotatable flanges, letting you position the pump for maximum clearance in tight installations. Three remote-mount output shafts are available in keyed and flange configurations for remote pump drives. Rated at 300 lb.ft. intermittent torque and 210 lb.ft. continuous torque (at speed ratios 03-07) at 1,000 RPM. The patented Muncie drag brake prevents output shaft rotation when the PTO is off. An optional pulse generator is available for System Protection Device shaft-speed monitoring. Call us to confirm proper fit for your application.
Features
6-bolt clutch shift activation
Fits Allison 1000/2000 series automatics and most popular manual transmissions
SAE "A", "B", and "BB" plus DIN 5462 direct-mount pump compatibility
Rotatable direct-mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Optional pulse generator for System Protection Device shaft-speed monitoring
Tech Specs
- Part Number: CS6B-A6705-H1SS or CS6BA6705H1SS
- Series: Muncie CS6
- Shift Type: 6-Bolt Clutch Shift
- Transmission Fit: Allison 1000/2000 series and most popular manual transmissions
- Direct Mount Pump Options: SAE "A", "B", "BB"; DIN 5462
- Output Shafts: Three remote-mount options - keyed and flange types
- Intermittent Torque (Speed Ratios 03-07): 300 lb.ft. / 407 Nm
- Continuous Torque (Speed Ratios 03-07): 210 lb.ft. / 285 Nm
- Intermittent HP @ 1,000 RPM (Speed Ratios 03-07): 57 HP / 43 kW
- Intermittent Torque (Speed Ratios 09-14): 275 lb.ft. / 373 Nm
- Continuous Torque (Speed Ratios 09-14): 193 lb.ft. / 261 Nm
- Intermittent HP @ 1,000 RPM (Speed Ratios 09-14): 52 HP / 39 kW
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Optional Pulse Generator: Yes, for System Protection Device shaft-speed monitoring
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
