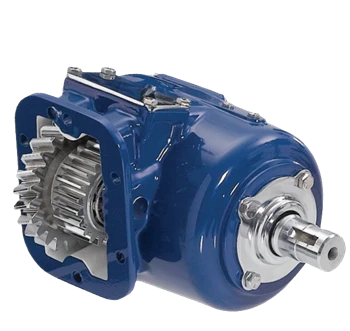

The Muncie CS6 Series power take-off CS6B-A6705-S1LP or CS6BA6705S1LP is a 6-bolt clutch-shift PTO built for a wide range of automatic and manual transmission applications, including the Allison 1000/2000 series. It accepts direct-mount pumps in SAE "A", "B", and "BB" as well as DIN 5462 configurations, and the direct-mount flanges rotate to position the pump for maximum clearance in tight installations. Three remote-mount output shafts are available in keyed and flange types for remote pump drive flexibility. Muncie's patented drag brake holds the output shaft stationary when the PTO is disengaged, reducing wear on connected equipment. An optional pulse generator allows a System Protection Device to monitor PTO shaft speed during operation. Call us to confirm proper fit for your application.
Features
CS6 Series, 6-bolt clutch-shift power take-off
Fits Allison 1000/2000 series and many popular manual transmissions
SAE "A", "B", and "BB"; DIN 5462 direct-mount pump flanges - rotatable for clearance
Three remote-mount output shaft options: keyed and flange types
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Optional pulse generator for System Protection Device shaft-speed monitoring
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
