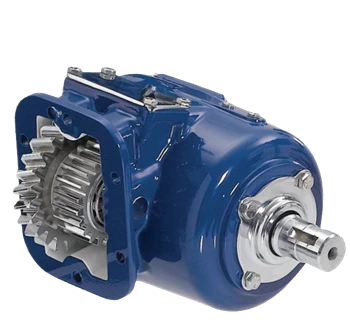

The Muncie CS6 Series power take-off, part number CS6B-A6705-S3IP or CS6BA6705S3IP, is a 6-bolt clutch shift PTO designed for broad transmission compatibility, including Allison 1000/2000 series automatics and most popular manual transmissions. Direct mount pump options cover SAE "A", "B", and "BB" flanges as well as DIN 5462, and the rotatable flanges let you position the pump for maximum clearance in tight installations. A patented Muncie drag brake prevents output shaft rotation when the PTO is off. Three remote mount output shaft configurations are available in keyed and flange types for versatility in remote pump drive setups. An optional pulse generator supports System Protection Device monitoring of PTO shaft speed. Available from Pro Gear and Transmission - call us to confirm fitment for your specific transmission.
Features
6-bolt clutch shift design for positive engagement
Compatible with Allison 1000/2000 series and most popular manual transmissions
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump options
Rotatable direct mount flanges allow pump positioning for maximum clearance
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Optional pulse generator for System Protection Device shaft speed monitoring
Tech Specs
- Part Number: CS6B-A6705-S3IP or CS6BA6705S3IP
- Series: Muncie CS6
- Shift Type: 6-Bolt Clutch Shift
- Direct Mount Pump Flanges: SAE "A", "B", "BB"; DIN 5462
- Remote Mount Output Shafts: Three configurations - keyed and flange types
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in OFF mode)
- Optional Pulse Generator: Compatible with System Protection Device for shaft speed monitoring
- Transmission Compatibility: Allison 1000/2000 series automatics and most popular manual transmissions
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
