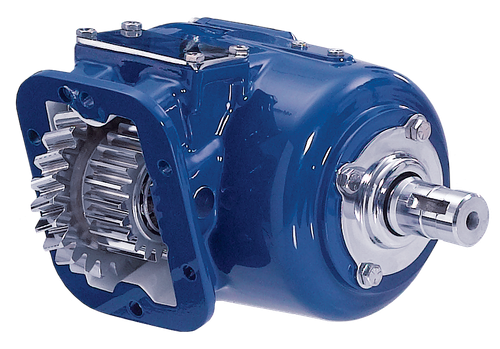

The Muncie CS6 Series power take-off CS6B-A6706-H3BP or CS6BA6706H3BP is a 6-bolt clutch shift PTO designed to fit Allison 1000/2000 series automatic transmissions as well as most popular manual transmissions. The CS6 Series accepts SAE "A", "B", and "BB" and DIN 5462 direct mount pump flanges, with rotatable flanges so the pump can be positioned for maximum clearance. Three remote mount output shaft options cover both keyed and flange types for remote pump drive flexibility. Muncie's patented drag brake prevents output shaft rotation when the PTO is in the OFF position. An optional pulse generator is available to let a System Protection Device monitor PTO shaft speed. Call us to confirm proper fit for your application.
Features
6-bolt clutch shift activation
Fits Allison 1000/2000 series automatics and most popular manual transmissions
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump flange options
Rotatable direct mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation in OFF mode
Optional pulse generator compatible with System Protection Device for PTO shaft speed monitoring
Tech Specs
- Activation: 6-Bolt Clutch Shift
- Direct Mount Pump Flanges: SAE "A", "B", "BB"; DIN 5462
- Flange Type: Rotatable
- Remote Output Shafts: Keyed and flange types (3 options)
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
