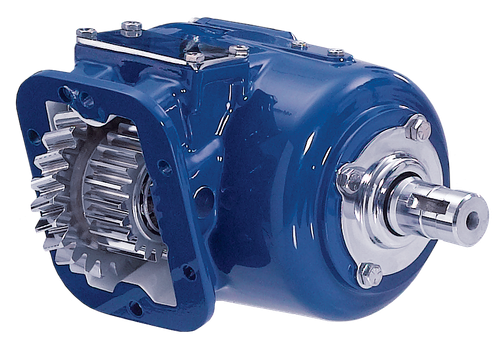

The Muncie CS6B-A6707-H1BP or CS6BA6707H1BP is a CS6 Series power take-off featuring a 6-bolt clutch shift engagement. It accommodates 19 transmission input gear configurations, covering most popular automatic and manual transmissions including Allison 1000/2000 series units. Direct mount pump flanges are offered in SAE "A", "B", and "BB" as well as DIN 5462 patterns, and all direct mount flanges are rotatable so the pump can be positioned for maximum clearance. Three remote mount output shaft options are available in both keyed and flange types for remote pump drive flexibility. The patented Muncie drag brake prevents output shaft rotation when the PTO is in the "OFF" position. An optional pulse generator is available to allow a System Protection Device to monitor PTO shaft speed. Call us to confirm proper fit for your application.
Features
CS6 Series power take-off, 6-bolt clutch shift engagement
19 transmission input gear configurations: fits most popular automatic and manual transmissions, including Allison 1000/2000 series
SAE "A", "B", and "BB"; DIN 5462 direct mount pump flange options, all rotatable for pump positioning clearance
Three remote mount output shaft choices in keyed and flange types for remote pump drives
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Optional pulse generator supports System Protection Device shaft speed monitoring
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 57 | 300 | 210 | (43) | (407) | (285) |
| 04 | 57 | 300 | 210 | (43) | (407) | (285) |
| 05 | 57 | 300 | 210 | (43) | (407) | (285) |
| 06 | 57 | 300 | 210 | (43) | (407) | (285) |
| 07 | 57 | 300 | 210 | (43) | (407) | (285) |
| 09 | 52 | 275 | 193 | (39) | (373) | (261) |
| 12 | 52 | 275 | 193 | (39) | (373) | (261) |
| 14 | 52 | 275 | 193 | (39) | (373) | (261) |
