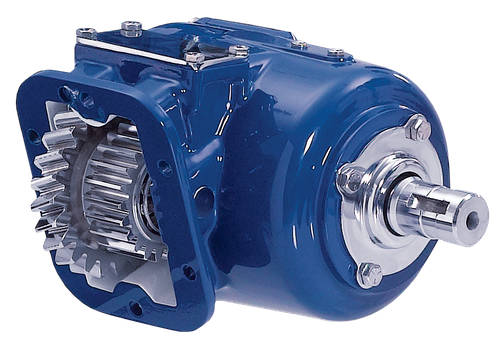

The Muncie CS6B-I8405-H3BX or CS6BI8405H3BX is a CS6 Series power take-off with a 6-bolt clutch shift configuration. It belongs to the CS6/CS8 family, which is commonly fitted to Allison 1000/2000 series transmissions as well as many manual transmissions. The series supports SAE "A", "B", and "BB" and DIN 5462 direct mount pump options, and the direct mount flanges are rotatable to allow pump positioning for maximum clearance. Three remote mount output shaft options cover keyed and flange types for versatility in remote pump drive setups. The Muncie patented drag brake prevents shaft rotation when the PTO is in the off position. Call us to confirm proper fit for your application.
Features
CS6 Series PTO with 6-bolt clutch shift configuration
Fits Allison 1000/2000 series transmissions and many popular manual transmissions
SAE "A", "B", and "BB"; DIN 5462 direct mount pump compatibility
Rotatable direct mount flanges for pump positioning and clearance optimization
Patented Muncie drag brake prevents output shaft rotation in the off position
Optional pulse generator supports PTO shaft speed monitoring
Tech Specs
- Series: CS6
- Configuration: 6-Bolt Clutch Shift
- Direct Mount Pump Flanges: SAE "A", "B", "BB"; DIN 5462
- Output Shaft Options: Three remote mount types - keyed and flange
- Drag Brake: Patented Muncie drag brake (prevents shaft rotation in off mode)
- Common Transmission Fit: Allison 1000/2000 series and many manual transmissions
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
