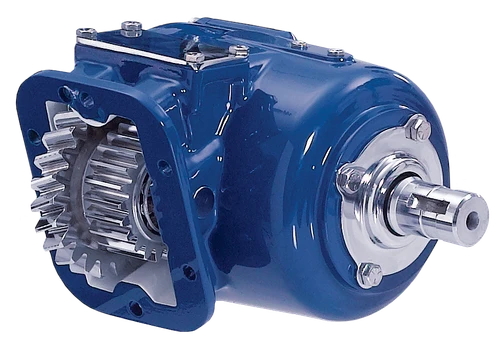

The Muncie CS6B-I8407-B3TP (also referenced as CS6BI8407B3TP) is a CS6 Series power take-off featuring a 6-bolt clutch shift design. The CS6 Series is engineered for direct mounting to Allison 1000/2000 automatic transmissions and a wide range of manual transmissions. It accepts SAE "A", "B", and "BB" as well as DIN 5462 direct-mount pump flanges, and the rotatable direct-mount flange lets you position the pump for maximum clearance in tight installations. Muncie's patented drag brake prevents output shaft rotation when the PTO is in the off position. Three remote-mount output shaft configurations are available in keyed and flange types. Pro Gear and Transmission carries this genuine Muncie unit. Call us to confirm proper fit for your application.
Features
CS6 Series 6-bolt clutch shift design
Fits Allison 1000/2000 automatic and many manual transmissions
Accepts SAE "A", "B", and "BB" and DIN 5462 direct-mount pump flanges
Rotatable direct-mount flange for pump positioning flexibility
Muncie patented drag brake prevents shaft rotation in the off position
Optional pulse generator compatible for PTO shaft speed monitoring
Tech Specs
- Part Number: CS6B-I8407-B3TP or CS6BI8407B3TP
- Series: CS6 Series Power Take-Off
- Shift Type: Clutch Shift
- Mounting: 6-Bolt
- Transmission Compatibility: Allison 1000/2000 Series and many manual transmissions
- Direct-Mount Pump Flanges: SAE "A", SAE "B", SAE "BB", DIN 5462
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
