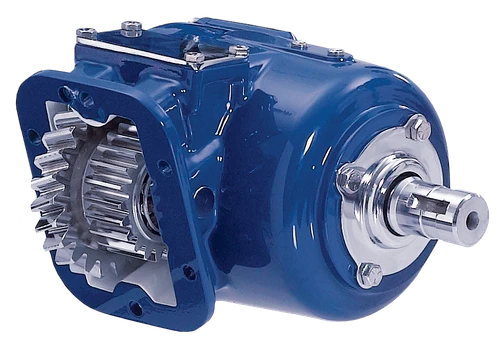

The Muncie CS6 Series Power Take-Off, part number CS6B-U6809-E1BX or CS6BU6809E1BX, is a 6-bolt clutch shift PTO from Muncie's CS6/CS8 Series. This series commonly fits Allison 1000/2000 series transmissions as well as many manual transmissions, accepting six different transmission input gear configurations. The CS6 Series supports SAE "A", "B", and "BB" and DIN 5462 direct mount pump flanges with rotatable mounting for clearance flexibility. Three remote mount output shaft options are available in keyed and flange types. Muncie's patented drag brake prevents output shaft rotation when the PTO is in the off position. Call us to confirm proper fit for your specific transmission and application.
Features
CS6 Series PTO with 6-bolt clutch shift configuration
Fits Allison 1000/2000 series and many popular manual transmissions
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump flange options
Rotatable direct mount flanges allow pump positioning for maximum clearance
Patented Muncie drag brake prevents output shaft rotation in the off position
Optional pulse generator available for PTO shaft speed monitoring
