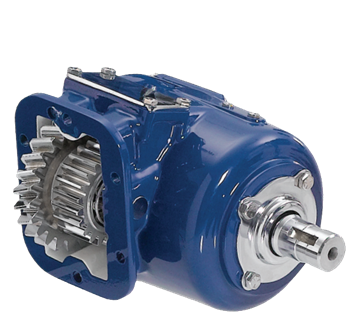

The Muncie CS6BA6804H1GP is a CS6/CS8 Series power take-off designed to fit Allison 1000/2000 series transmissions as well as many popular manual transmissions. The CS6/CS8 Series supports six transmission input gear configurations, giving it broad compatibility across truck applications. Direct mount pump flanges are rotatable to allow positioning for maximum clearance, and the unit accommodates SAE "A", "B", and "BB" as well as DIN 5462 pump interfaces. Muncie's patented drag brake prevents output shaft rotation when the PTO is in the off position. Call us to confirm the right fit for your specific transmission and pump configuration.
Features
CS6/CS8 Series PTO - fits Allison 1000/2000 series and many popular manual transmissions
Six transmission input gear configurations for broad fitment coverage
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump interface options
Rotatable direct mount flanges allow pump positioning for maximum clearance
Muncie patented drag brake prevents shaft rotation when PTO is off
Optional pulse generator compatible for PTO shaft speed monitoring
