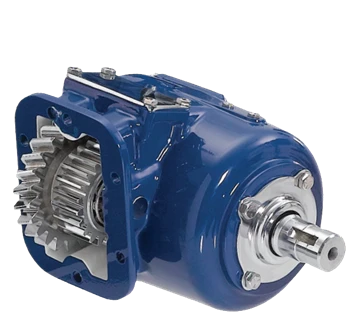

The Muncie CS6BA6804H3PP is a CS6/CS8 Series power take-off designed to fit most popular automatic and manual transmissions, including the Allison 1000/2000 Series. The CS6/CS8 Series supports six transmission input gears, giving it broad fitment across both automatic and manual applications. Three remote mount output shaft options are available in keyed and flange types for remote pump drive flexibility. Direct mount pump flanges are rotatable to allow maximum clearance when positioning the pump. Muncie's patented drag brake prevents shaft rotation when the PTO is in the off position. An optional pulse generator is available for PTO shaft speed monitoring via a System Protection Device. Call us to confirm proper fit for your transmission and pump configuration.
Features
CS6/CS8 Series PTO fits Allison 1000/2000 Series and most popular manual transmissions
Six transmission input gears for broad automatic and manual transmission coverage
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump options
Rotatable direct mount flanges allow pump positioning for maximum clearance
Patented Muncie drag brake prevents shaft rotation in the off position
Optional pulse generator supports PTO shaft speed monitoring with a System Protection Device
