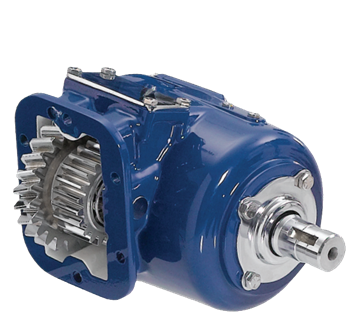

The Muncie CS6BA6804J3KP is a CS6/CS8 Series power take-off built for direct mount pump applications. The CS6/CS8 Series accommodates six transmission input gears, making it compatible with most popular automatic and manual transmissions including Allison 1000 and 2000 Series. Three remote mount output shaft options are available in keyed and flange configurations for versatility in pump drive setups. Direct mount flanges are rotatable to allow maximum clearance positioning, and SAE "A", "B", and "BB" as well as DIN 5462 pump interfaces are supported. The patented Muncie drag brake prevents shaft rotation when the PTO is disengaged. Call us to confirm proper fit for your specific transmission and pump configuration.
Features
CS6/CS8 Series PTO with six transmission input gears for broad automatic and manual transmission coverage
Compatible with Allison 1000 and 2000 Series transmissions
SAE "A", "B", and "BB" and DIN 5462 direct mount pump interfaces
Rotatable direct mount flanges for maximum pump clearance
Patented Muncie drag brake prevents output shaft rotation when PTO is in the OFF position
Optional pulse generator available for PTO shaft speed monitoring
