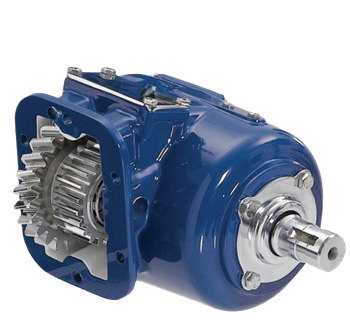

The Muncie CS6BA6805H1BX is a CS6 Series Power Take-Off built to fit Allison 1000/2000 series transmissions as well as a wide range of manual transmissions. The CS6 Series accommodates six transmission input gears, giving it broad fitment across popular automatic and manual applications. Direct mount pump flanges are rotatable, allowing pump positioning for maximum clearance, and the patented Muncie drag brake prevents shaft rotation when the PTO is in the OFF position. SAE "A", "B", and "BB" plus DIN 5462 direct mount pump options are supported, along with three remote mount output shaft configurations in keyed and flange types. Call us to confirm proper fit for your specific transmission and pump setup.
Features
CS6 Series PTO fitting Allison 1000/2000 series and many popular manual transmissions
Six transmission input gear configurations for broad application coverage
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump options
Rotatable direct mount flanges for maximum pump clearance positioning
Patented Muncie drag brake prevents shaft rotation when PTO is off
Three remote mount output shaft options in keyed and flange types
