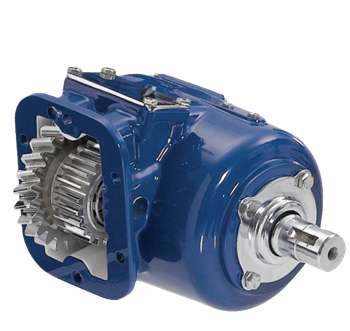

The Muncie CS6BA6907E1VP is a CS6/CS8 Series power take-off designed to fit Allison 1000/2000 series transmissions as well as many manual transmissions. The CS6/CS8 Series accommodates six transmission input gears, giving it broad fitment across popular automatic and manual applications. Direct mount pump flanges are SAE "A", "B", and "BB" and DIN 5462 compatible, and the flanges rotate to allow pump positioning for maximum clearance. Muncie's patented drag brake prevents output shaft rotation when the PTO is in the OFF position. An optional pulse generator is available to let a System Protection Device monitor shaft speed. Call us to confirm proper fit for your specific transmission and pump configuration.
Features
CS6/CS8 Series PTO fits Allison 1000/2000 series and many manual transmissions
Six transmission input gears for broad automatic and manual transmission coverage
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump flange options
Rotatable direct mount flanges allow pump positioning for maximum clearance
Patented Muncie drag brake prevents output shaft rotation when PTO is off
Optional pulse generator compatible for shaft speed monitoring via System Protection Device
