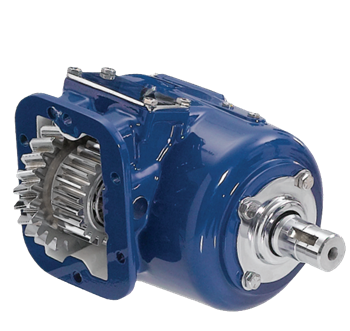

The Muncie CS6BA6907H1VP is a CS6/CS8 Series power take-off designed to fit a wide range of automatic and manual transmissions, including Allison 1000/2000 series applications. The CS6/CS8 series accommodates six transmission input gear configurations and offers three remote mount output shaft options in keyed and flange types. Direct mount pump flanges are rotatable for maximum installation clearance and accept SAE "A", "B", and "BB" as well as DIN 5462 pump configurations. The series includes Muncie's patented drag brake, which prevents output shaft rotation when the PTO is disengaged. Call us to confirm proper fit for your specific transmission and application.
Features
CS6/CS8 Series PTO from Muncie Power Products
Fits six transmission input gear configurations, covering most popular automatic and manual transmissions
Three remote mount output shaft options in keyed and flange types
Rotatable direct mount flanges accept SAE "A", "B", "BB", and DIN 5462 pumps
Patented Muncie drag brake prevents shaft rotation when PTO is in the OFF position
Optional pulse generator available for PTO shaft speed monitoring
