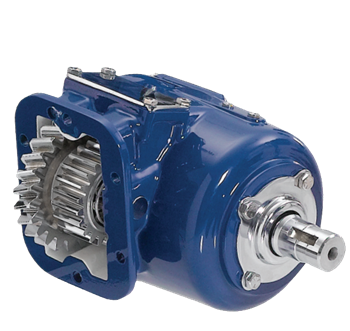

The Muncie CS6BA6907H3KC is a CS6/CS8 Series power take-off designed to fit Allison 1000/2000 series transmissions as well as many popular manual transmissions. The CS6/CS8 Series accommodates six transmission input gears, giving it broad coverage across both automatic and manual applications. Three remote mount output shaft options are available in keyed and flange configurations, and direct mount pump flanges conforming to SAE "A", "B", and "BB" as well as DIN 5462 standards allow fitment with most common hydraulic pumps. The rotatable direct mount flange lets you position the pump for maximum clearance. Muncie's patented drag brake prevents output shaft rotation when the PTO is disengaged. Call us to confirm proper fit for your specific transmission and application.
Features
Fits Allison 1000/2000 series and many manual transmissions
Six transmission input gears for broad automatic and manual transmission coverage
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump compatibility
Rotatable direct mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation when PTO is off
Optional pulse generator for PTO shaft speed monitoring with System Protection Device
