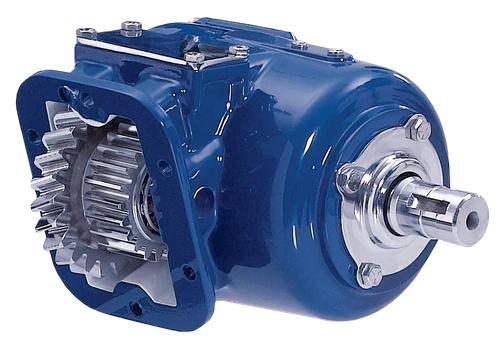

The Muncie CS6G-U6003-A3KP or CS6GU6003A3KP is a CS6 Series power take-off featuring a 6-bolt clutch shift configuration. Part of Muncie's CS6/CS8 family, this PTO is commonly fitted to Allison 1000/2000 series transmissions as well as many popular manual transmissions. The CS6 Series accepts SAE "A", "B", and "BB" as well as DIN 5462 direct-mount pump flanges, and the rotatable direct-mount flange allows positioning for maximum clearance in the vehicle installation. Muncie's patented drag brake prevents output shaft rotation when the PTO is in the OFF position. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
CS6 Series 6-bolt clutch shift power take-off
Fits Allison 1000/2000 series and many popular manual transmissions
Accepts SAE "A", "B", and "BB" and DIN 5462 direct-mount pump flanges
Rotatable direct-mount flange for maximum pump clearance
Muncie patented drag brake prevents output shaft rotation in OFF mode
Optional pulse generator compatible for PTO shaft speed monitoring
Tech Specs
- Series: CS6
- Shift Type: 6-Bolt Clutch Shift
- Direct Mount Pump Flanges: SAE "A", "B", "BB"; DIN 5462
- Common Transmission Fitment: Allison 1000/2000 Series and many manual transmissions
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
- Part Number: CS6G-U6003-A3KP or CS6GU6003A3KP
