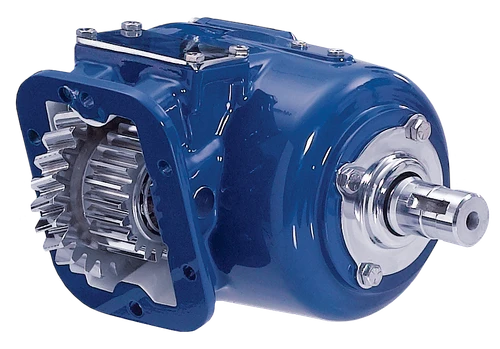

The Muncie CS6G-U6005-S1KP or CS6GU6005S1KP is a CS6 Series power take-off with a 6-bolt clutch shift configuration. It fits a wide range of automatic and manual transmissions, including Allison 1000/2000 series applications. The CS6 Series accepts SAE "A", "B", and "BB" and DIN 5462 direct-mount pump flanges, with rotatable mounting flanges to allow pump positioning for maximum clearance. Muncie's patented drag brake prevents output shaft rotation when the PTO is disengaged. The series supports up to 57 intermittent HP at 1,000 RPM. Call us to confirm proper fit for your specific transmission and pump configuration.
Features
CS6 Series power take-off with 6-bolt clutch shift
Fits Allison 1000/2000 series automatics and many popular manual transmissions
Accepts SAE "A", "B", and "BB" plus DIN 5462 direct-mount pump flanges
Rotatable direct-mount flanges for pump positioning and clearance
Muncie patented drag brake prevents output shaft rotation in the off position
Series rated up to 57 intermittent HP at 1,000 RPM
Tech Specs
- Series: CS6
- Configuration: 6-Bolt Clutch Shift
- Direct-Mount Pump Options: SAE "A", "B", "BB"; DIN 5462
- Intermittent HP (at 1,000 RPM): 57
- Intermittent Torque: 300 lb.ft.
- Continuous Torque: 210 lb.ft.
- Brake: Muncie Patented Drag Brake
- Transmission Compatibility: Allison 1000/2000 Series and many manual transmissions
