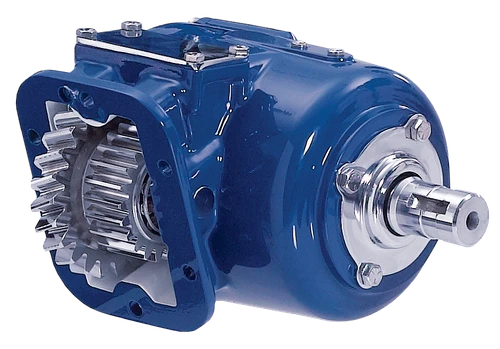

The Muncie CS6GA6804H3KX is a CS6/CS8 Series Power Take-Off built to fit a wide range of automatic and manual transmissions, including the Allison 1000 and 2000 series. The CS6/CS8 Series accepts SAE "A", "B", and "BB" as well as DIN 5462 direct mount pump flanges, and the rotatable flange design lets you position a pump for maximum clearance in tight installations. A patented Muncie drag brake prevents output shaft rotation when the PTO is disengaged. Three remote mount output shaft configurations are available in keyed and flange types. Call us to confirm this part number fits your specific transmission and pump setup.
Features
CS6/CS8 Series PTO fits Allison 1000/2000 series and many popular manual transmissions
Patented Muncie drag brake prevents output shaft rotation when PTO is in the OFF position
Accepts SAE "A", "B", and "BB" and DIN 5462 direct mount pump flanges
Rotatable direct mount flanges allow pump positioning for maximum installation clearance
Three remote mount output shaft options available in keyed and flange configurations
Optional pulse generator supports PTO shaft speed monitoring via System Protection Device
