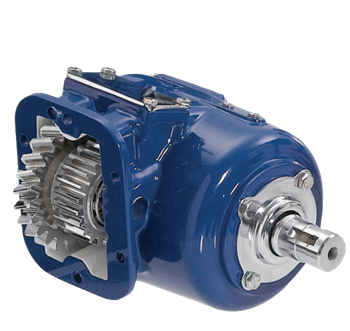

The Muncie CS6N-I8505-E1BP (also referenced as CS6NI8505E1BP) is a power take-off unit from Muncie's CS6/CS8 Series. This series commonly fits Allison 1000/2000 series transmissions as well as many manual transmissions. Six transmission input gear configurations cover most popular automatic and manual applications. Direct mount pump flanges conform to SAE "A", "B", and "BB" as well as DIN 5462 standards, and the rotatable flanges allow pump positioning for maximum clearance. Muncie's patented drag brake prevents output shaft rotation when the PTO is in the off position. Remote mount output shafts are available in keyed and flange types. Call us to confirm proper fit for your specific transmission and application.
Features
CS6/CS8 Series PTO with six transmission input gear configurations for broad application coverage
Commonly fits Allison 1000/2000 series transmissions and many manual transmissions
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump flange options
Rotatable direct mount flanges allow pump positioning for maximum clearance
Patented Muncie drag brake prevents output shaft rotation when PTO is disengaged
Three remote mount output shaft options in keyed and flange types
